Customizable Plantain Flour Processing Machine In Nigeria

The banana chips or plantain chips dried by this machine can be ground into flour to achieve an output of 60 kg to 1500 kg per hour and support customization.

Category:

Description

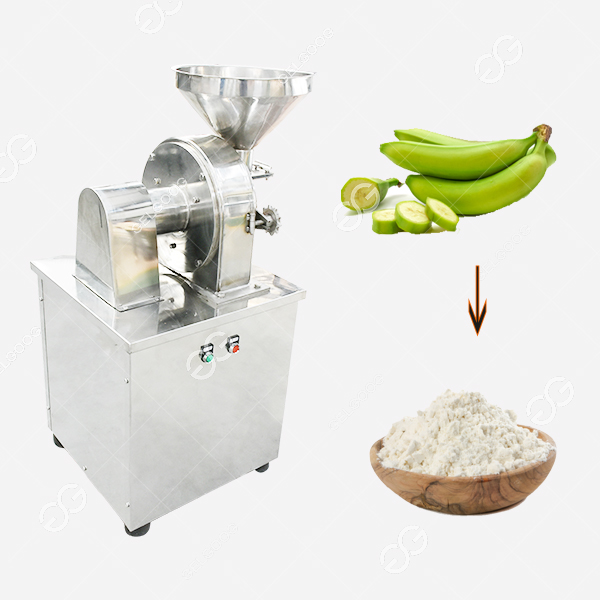

The plantain flour processing machine provided by our company has a simple structure, stable operation, and good crushing effect. This banana flour making machine utilizes the high-speed relative movement between the movable toothed disk and the fixed toothed disk to crush the objects to be crushed by the combined effects of tooth impact, friction, and material impact. It is often used to grind dry products, with adjustable particle size.

  • Ingredients: Banana chips (dried)
  • Finished product: banana powder, plantain powder

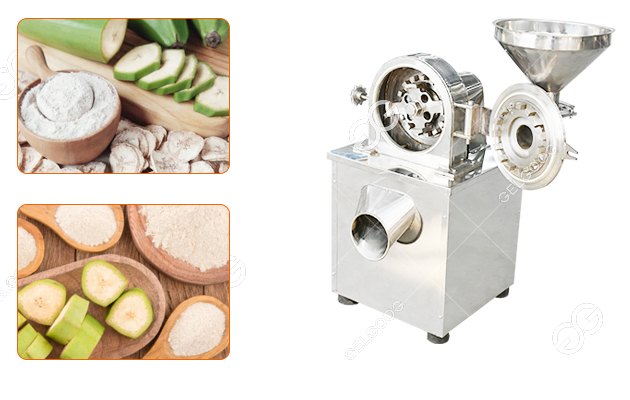

commercial plntain flour production machine features

Structure And Working Principle Of Plantain Flour Production Machine

The plantain flour processing machine is composed of a frame, a crushing chamber, and a hopper. The main shaft is equipped with a movable toothed disk, a movable knife is installed on the movable toothed disk, a fixed toothed disk is installed in the crushing door, and a fixed toothed ring with steel teeth is installed on the fixed toothed disk. The movable knife and the fixed toothed ring on the movable toothed disk are arranged alternately. When the main shaft is running at a high level, the movable gear sleeve rotates relative to each other, and the material is crushed under the combined effects of mutual impact, friction, shear, and material impact between the fixed teeth and the movable teeth.

The crushed materials can be directly discharged from the crushing cavity of the main engine, and the particle size can be obtained by changing screens with different apertures. As long as the number of meshes is not up to the stipulation, it will keep stirring in the cavity.

Advantages Of Plantain Flour Processing Machine In Nigeria

  1. The material is made of stainless steel, with good corrosion resistance and moisture resistance.
  2. Easy to operate and clean up.
  3. The mesh number of the powder can be adjusted by changing the screen.
  4. Low noise, stable working performance and low energy consumption.
  5. It is easy to install and maintain, and the material can be cleaned by opening the door cover, which reduces the work intensity of scooping.
  6. Wide range of applications, suitable for a variety of dried products: dried fruit and vegetable products, Chinese herbal medicine, etc.

Operation Points

  • Feeding can only be done after the stable no-load operation
  • This plantain flour-making machine is suitable for crushing dry brittle materials, not suitable for crushing materials with low softening points and high viscosity.
  • The wearing parts of the universal crusher should be checked frequently and replaced in time to ensure product quality and output.
  • Clean the plantain flour processing machine after the operation.

The banana plantain flour production machine is usually used with the banana chip dryer machine. If you want to know more details about this machine, you can leave me a message.

Technical Data Of Plantain Flour Processing Machine

Model GG–20B-C GG-30B-C GG40B-C GG60B
Capacity(kg/h) 60-150kg/h 100-300kg/h 160-800kg/h 500-1500kg/h
Revolution of spindle 4500r/min 3800r/min 3400r/min 2800r/min
Grinding size 10-200 mesh
Crusher motor 4kw 5.5kw 11kw 15kw
Cleaner motor 0.75kw
Dimension (mm) 550*600*1250 600*700*1450 800*900*1550 1000*900*1680
Weight (kg) 250 320 550 680
