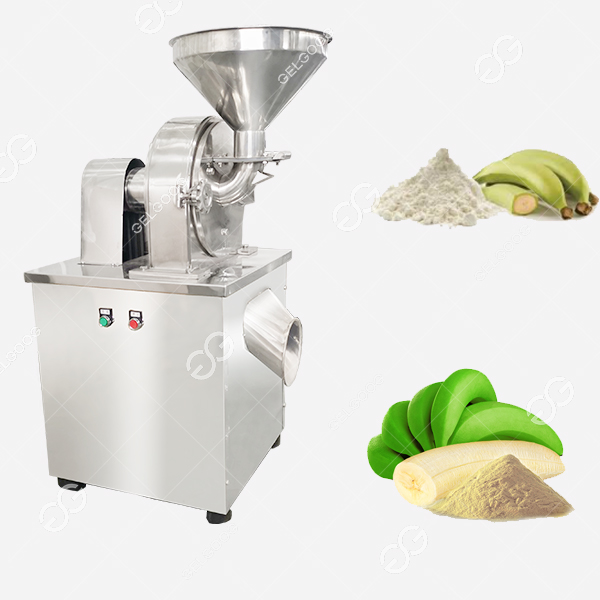

Automatic Plantain Grinder Machine For Flour

The plantain grinder machine is one of the important equipment for making plantain flour. With the increase in the market demand for plantain flour, the demand for this machine is also increasing.



This plantain grinder machine is constructed of high-quality 304 stainless steel. Grinding plantains into plantain flour is a fully automatic process with the advantages of a good crushing effect and high grinding efficiency. In addition, plantain grinder is also multi-functional, also known as a high-efficiency grinder, food grinder, seasoning flour grinder, Chinese herbal medicine grinder, etc.

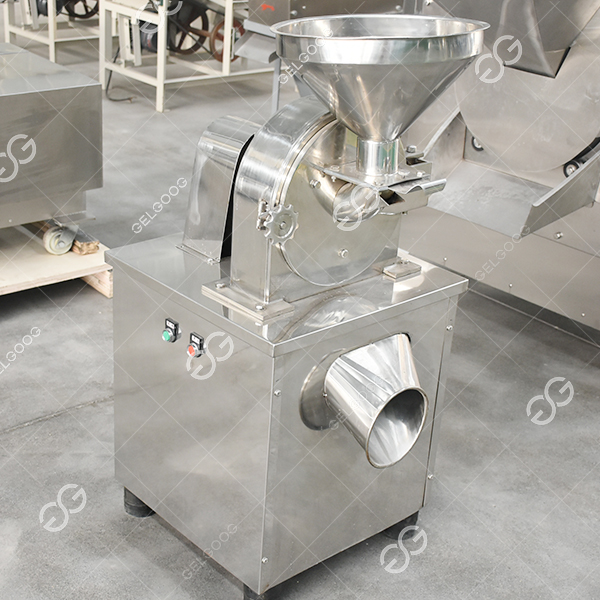

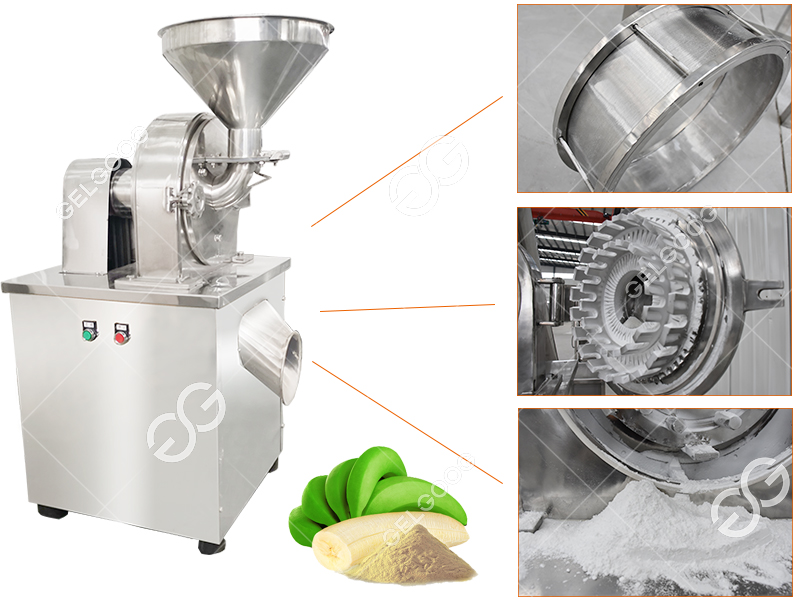

plantain grinder machine details

Working Principle Of Plantain Grinding Machine

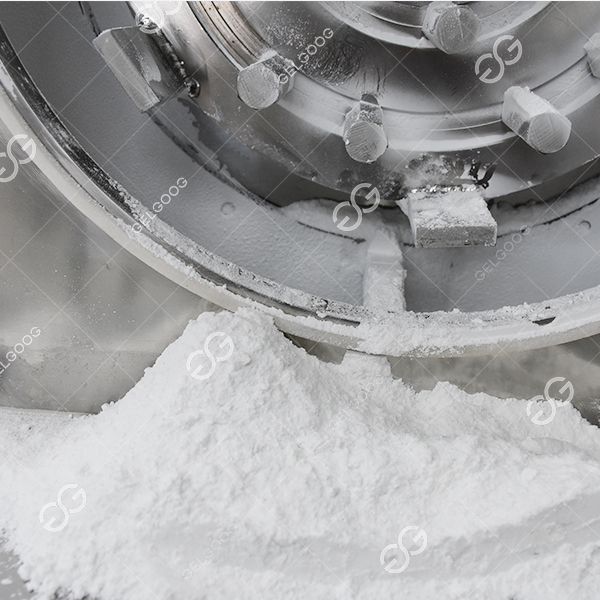

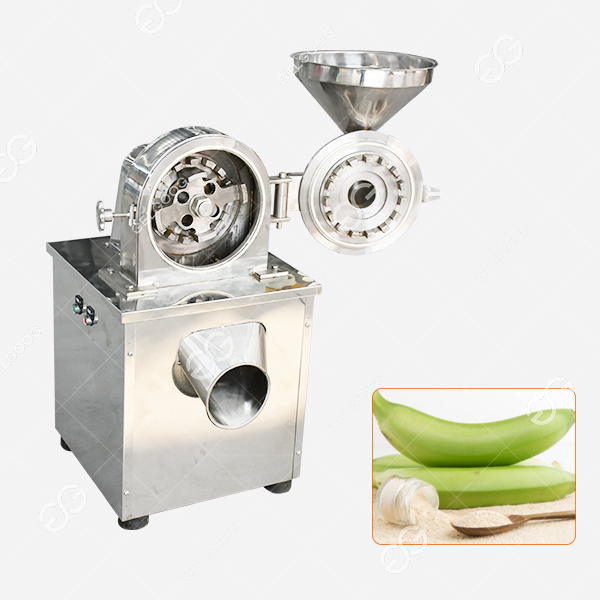

This unit utilizes the relative movement between the movable toothed disc and the fixed toothed disc to make the materials crushed by the impact, friction and impact of the toothed discs and the materials against each other. The plantain grinder is composed of two grinding discs that are solid and the other that rotates at a high speed. All materials are ground into flour by these two grinding discs. When the material is ground into the desired flour, it comes out of the filter.

Working Characteristics Of Plantain Grinder Machine

  1. When grinding, a strong airflow is generated in the cavity, and the heat of the grinding chamber flows out from the screen together with the finished product. The fineness of the grinding can be determined by replacing the screen.
  2. This automatic plantain flour grinder can work continuously with low voice and has high efficiency.
  3. The ground plantain flour will automatically enter the collection bag under the action of rotating centrifugal force.
  4. There is no dust flying in the production process, and the utilization rate of materials can be improved.
  5. The structure of the plantain grinding machine is simple and firm, and the operation is smooth, uniform and good.

 Working Video Of Plantain Grinder

This plantain grinding machine has the advantages of high efficiency, low noise, stable working performance and reliable product quality. The flour collecting chamber adopts a fully enclosed silencing structure, which can effectively reduce the working noise. Below is the working video of this machine.

Advantages Of Plantain Grinding Machine

  1. Small size, beautiful appearance, lightweight and easy to move.
  2. Simple operation, no vibration, low noise, energy-saving and safety, etc.
  3. Made of stainless steel, with strong wear resistance and corrosion resistance.
  4. The grinding range is wide and is used for a variety of materials: fruits, vegetables, seafood, spices, Chinese herbal medicines and so on.
  5. Durable, reasonable cost, can quickly bring benefits.
  6. Support customization, this machine can be customized according to customers’ requirements.

If you want to know more details about this grinder machine or get a quote, please contact us. We will provide you with more information on the plantain grinder machine as soon as possible.

Technical Data Of Plantain Grinding Machine

Model GG–20B-C GG-30B-C GG40B-C GG60B
Capacity(kg/h) 60-150kg/h 100-300kg/h 160-800kg/h 500-1500kg/h
Revolution of spindle 4500r/min 3800r/min 3400r/min 2800r/min
Grinding size 10-200 mesh
Crusher motor 4kw 5.5kw 11kw 15kw
Cleaner motor 0.75kw
Dimension (mm) 550*600*1250 600*700*1450 800*900*1550 1000*900*1680
Weight (kg) 250 320 550 680
