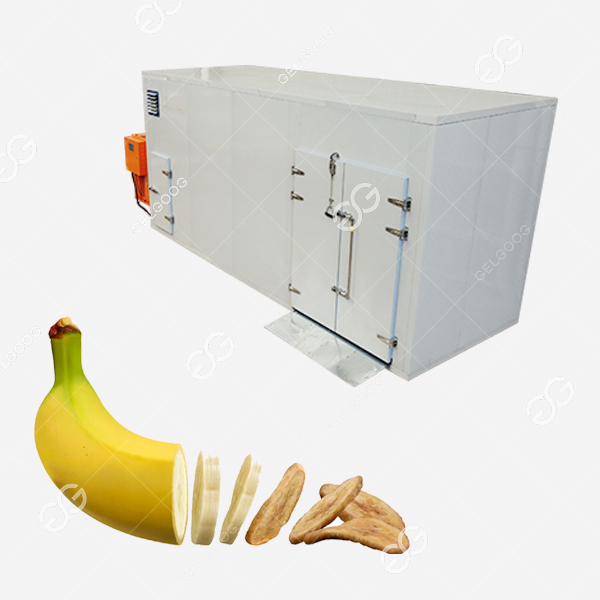

Industrial Banana Chips Drying Machine Of Heat Pump

This drying machine can be applied to a variety of fruit and vegetable products, seafood, and Chinese herbal medicines by adjusting the drying time and temperature.

Category:

Description

This banana chips drying machine can make the heat pump host provide multiple heat for the drying room through a small amount of electric energy. It has the characteristics of simple structure, accurate temperature and humidity control, and convenient use. It can also meet the needs of large quantities of fruit and vegetable drying and traditional Chinese medicine. Material drying, seafood drying, etc. This banana chips drying machine can also be used with a complete banana chip production line.

Ingredients: Banana Chips

The finished product, dried banana chips

Drying temperature: 45-70℃

Drying time: 12-15h

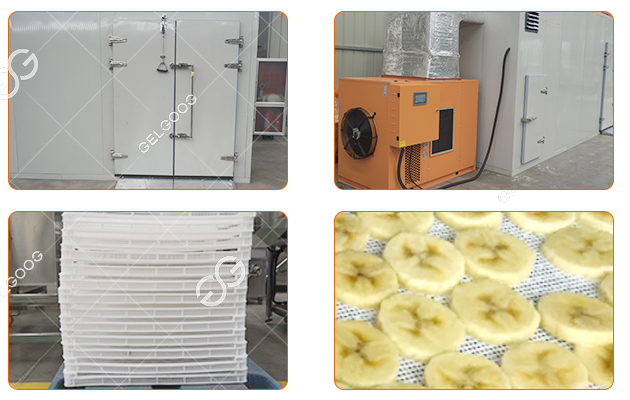

banana drying machine details

Working Principle Of Banana Drying Machine

A small amount of electrical energy drives the compressor in the heat pump host to perform work, compressing the heat pump refrigerant into a high-temperature and high-pressure gas, which enters the condenser to release heat, and the heat continuously heats the materials in the banana chips dryer machine under the action of the circulating fan system. To the drying effect. After a long period of drying operation, the heat in the dehumidification can be recycled and used to increase the efficiency of the drying room.

Applications Of Banana Dryer Machine

  • Fruits and vegetables: banana slices, lemon slices, dried mango, coconut slices, figs, shredded radish, garlic slices, ginger slices.
  • Seasoning: shiitake mushrooms, moringa leaves, peppers, star anise.
  • Seafood: kelp, seaweed,squid, shrimp, hairtail
  • Tea(Chrysanthemum, honeysuckle, jasmine), Chinese herbal medicine.

commercial banana drying machine applications

Advantages Of Banana Chips Dryer Machine

  1. This banana chips dryer machine is of good quality and high stability.
  2. The dried materials are clean and hygienic, with good quality. Efficiency has also been greatly improved.
  3. The banana chips dehydrator is made of polyurethane insulation boards with very good insulation properties.
  4. Real-time detection of internal temperature and humidity can be realized to ensure that the drying materials are dried in a suitable temperature and humidity environment.
  5. The heat pump drying room uses heat pump technology. The main advantage is that it does not need to consume gas or electricity and save energy.
  6. Green and environmental protection, because the whole process of heat pump banana chips drying machine is carried out in a closed system, there is no need to exhaust moisture to the surrounding environment, and at the same time, it will not emit harmful and odorous gases.

Work Video Of Banana Drying Machine

Below is the working video of this banana chips dryer machine. If you want to know more details about this dryer, please contact us. We can recommend different models of products according to customer needs, and also support customization.

Technical Parameter

Item Heat Pump Dryer Parameter
Model GG-3P GG-7P GG-15P Unit
Environment temperature -10-43 -15-43 -15-43 ºC
Drying temperature range 30-75 30-75 30-75 ºC
Rated power 4 12 21 Kw
Maximum power 10 18 33 Kw
Power supply form 380/3/50 380/3/50 380/3/50 V/Ph/Hz
Temperature control accuracy ±1 ±1 ±1 ºC
Electric heating power 6 6 12 Kw
Controller Single chip microcomputer/PLC+color screen control
Noise level ≤75 ≤75 ≤75 dB(A)
Capacity 100-200 300-700 800-1500 Kg
Dehydration capacity 9 21 43 Kg/h(=50ºC,80%)
