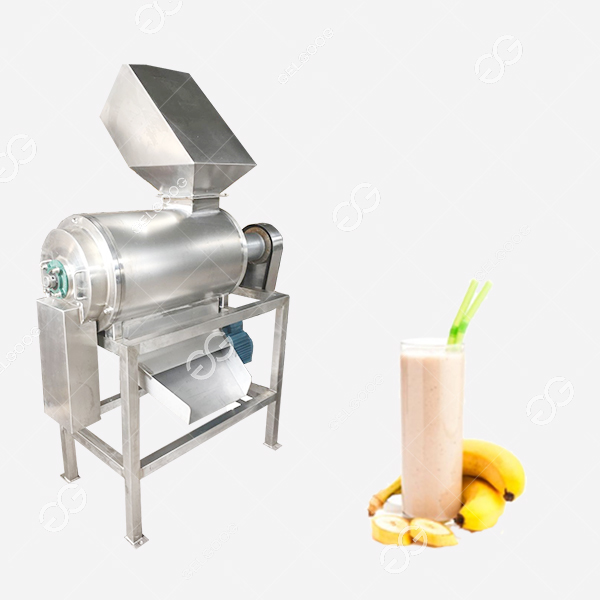

Commercial Banana Fruit Pulp Making Machine 1 Ton

This machine is made of stainless steel, suitable for a variety of fruits, and can be customized according to different fruits.

Category:

Description

The banana pulp making machine can directly make bananas into a puree shape, which is suitable for pulping a variety of fruits and vegetables, and has the characteristics of high production efficiency and simple operation. It can be used alone or on the production line. It is well received by many customers and is an ideal equipment for commercial banana pulp.

  • Ingredients: bananas or other fruits and vegetables.
  • Finished product: banana pulp.
  • Processing capacity: 1-2.5 tons/hour of raw materials.
  • Power: 4Kw 380V 50Hz.
  • Material: 304 stainless steel (except transmission).

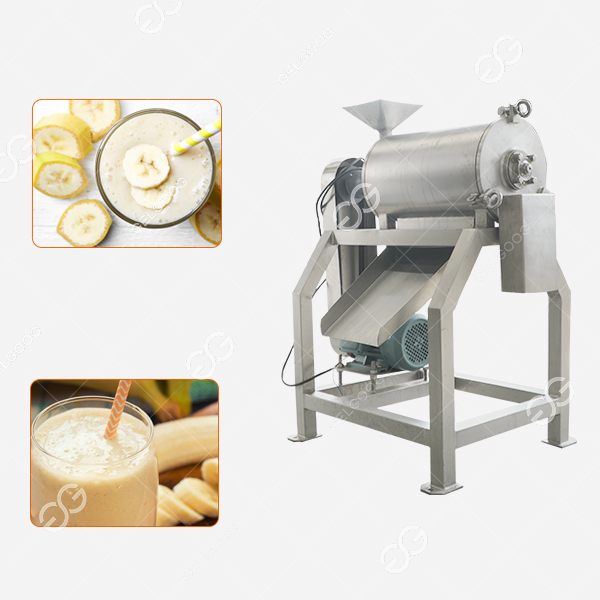

automatic banana pulp making machine display

Working Principle Of Banana Pulp Making Machine

The motor is driven by a belt. After the material enters the feeding port, the fruit pulping machine discharges the material evenly to the scraper and screen. Due to the rotation effect of the scraper and the existence of the lead angle, the material moves along the cylinder to the outlet end, and the moving track is spiral. The material is affected by the centrifugal force during the movement between the scraper and the screen cylinder. Grate to obtain banana pulp.

Features Of Banana Pulp Making Machine

  • The fruit pulper machine is composed of a feed hopper, a discharge hopper, a beater, a screen, a frame, a customized motor, and a cabinet.
  • All parts in contact with the fruit pulp and food are made of 304 stainless steel to keep the juice clean and hygienic and in line with food hygiene.
  • As long as the screens of different specifications are changed and the lead angle of the scraper is adjusted, different beating effects can be changed.
  • Easy to clean, safe and hygienic, continuous feeding, wide application range.
  • This fruit pulping making machine can be customized according to the characteristics of the material.
  • Detailed instructions for the factory configuration of the fruit pulp machine and installation video guidance can also be provided. Wrap with plastic film before packaging to avoid moisture on the sea surface.

Working Video Of The Banana Pulp Making machine

Below is the working video of this banana pulp machine, you can clearly see how the machine works. In addition, if you want to know more details about this machine or get a free quote, please leave us a message.

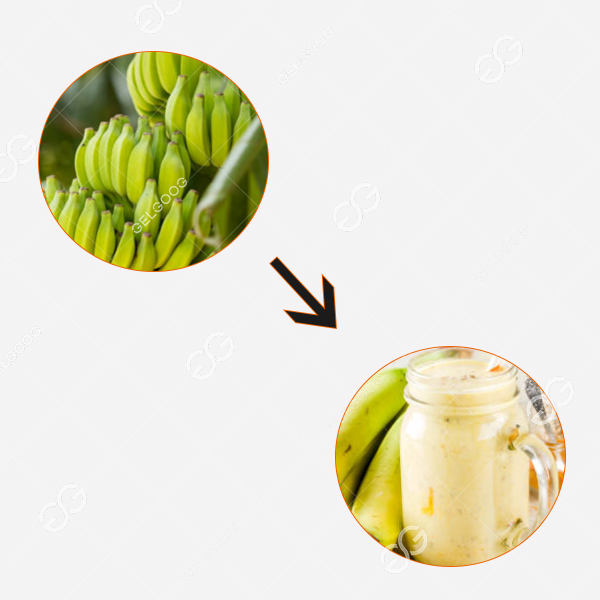

Application Of Fruit Pulping Machine

The banana pulp making machine is widely used not only for foods with separated cores, but also for fruits without seeds.

  • Core products: mango, peach, apple, apricot, etc.
  • Seedless (or smaller pit) products: strawberry, banana, kiwi, orange, tangerine, passion fruit, pear, dragon fruit, etc.

Technical Parameter

Model GG-1
Capacity 50-100kg/h
Power 3KW
Voltage 380v
Enucleated (peeled) Speed 100-500r/min (frequency control)
Beating Speed 860r/min
Beating mesh aperture φ0.6-φ1.0mm
Dimension 1350×770×1500mm
