Commercial Plantain Dryer Machine In Nigeria

When this plantain drying machine dries plantains, the drying temperature is between 45°C and 70°C for about 12-15 hours. It has the advantages of accurate temperature and humidity control and low cost.

Category:

Description

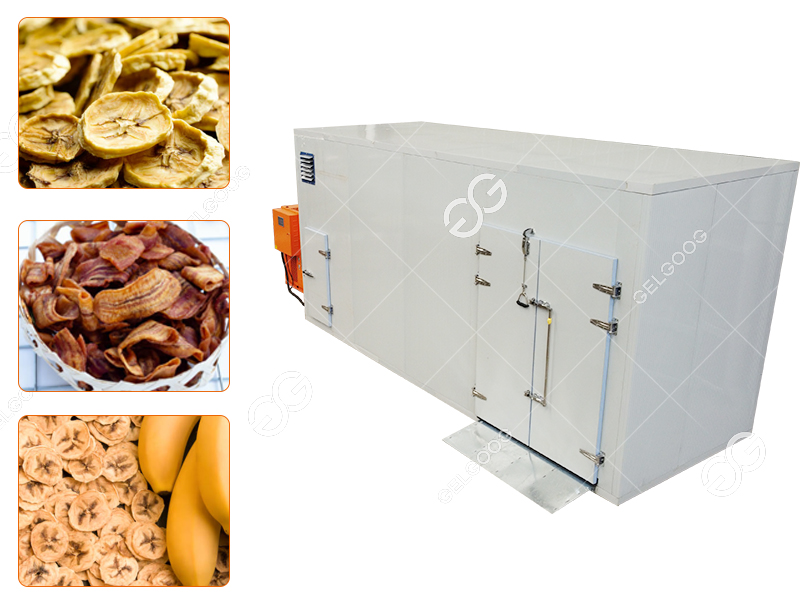

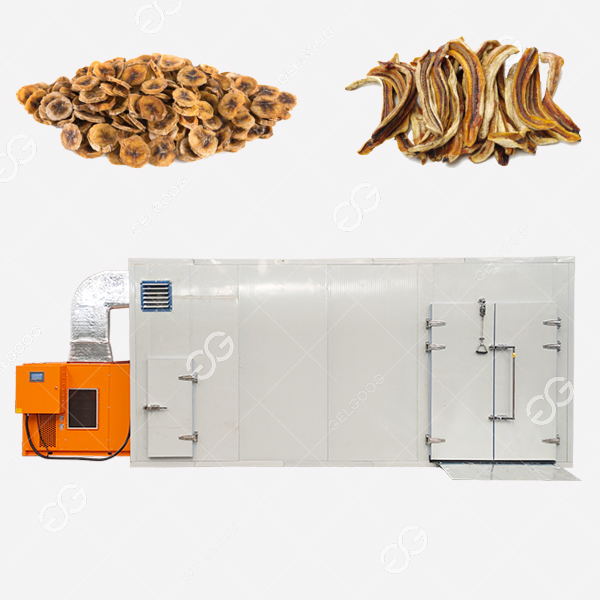

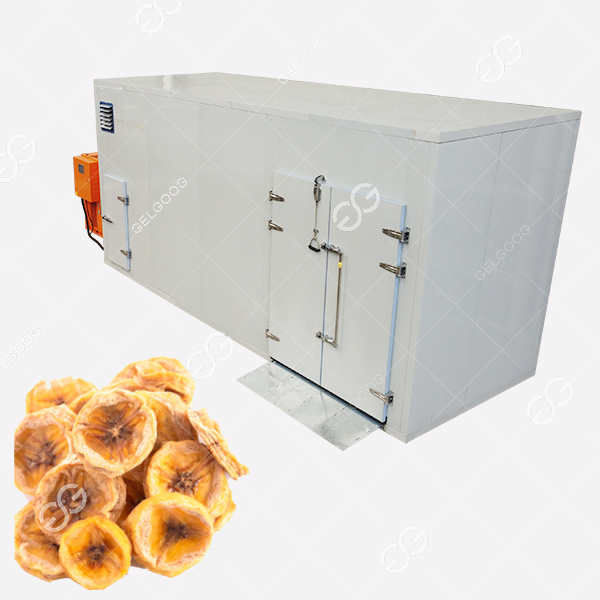

This plantain dryer machine in Nigeria is a commonly used drying equipment in the food industry. It has the advantages of high drying efficiency, good drying quality and stable quality, environmental protection and energy-saving, and low investment cost. The drying time and drying temperature can be adjusted according to the characteristics of different materials. It is easy to use and can control temperature and humidity accurately. It can meet the needs of drying large quantities of fruits and vegetables, drying Chinese medicinal materials, and drying seafood.

plantain dryer machine applications

Drying Principle Of Plantain Dryer Machine In Nigeria

This plantain drying machine mainly uses the refrigerant to pass through the compressor to become high temperature and high-pressure gas, and then enters the condenser to release heat, and the heat released by the condenser is sent to the drying room by the circulating fan to achieve the purpose of heating the air in the drying room. As the temperature increases, the water on the surface of the plantain chips gradually volatilizes, and then the moisture is removed by the dehumidification system, and then heat energy is recovered, so as to achieve the effect of drying.

Structure Of Plantain Drying Machine

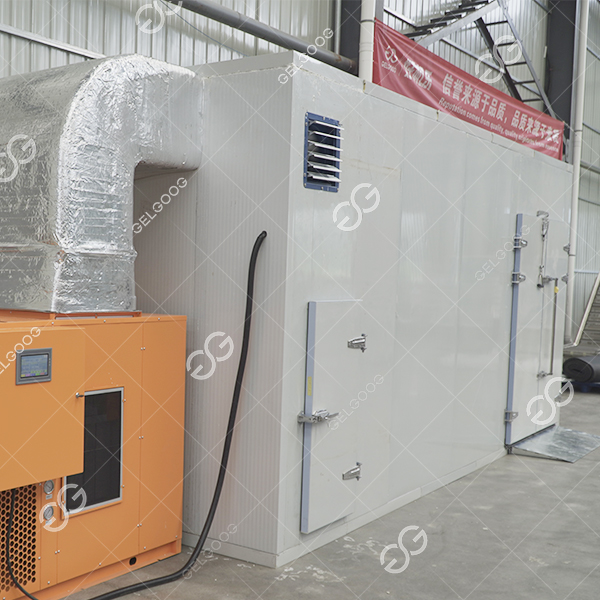

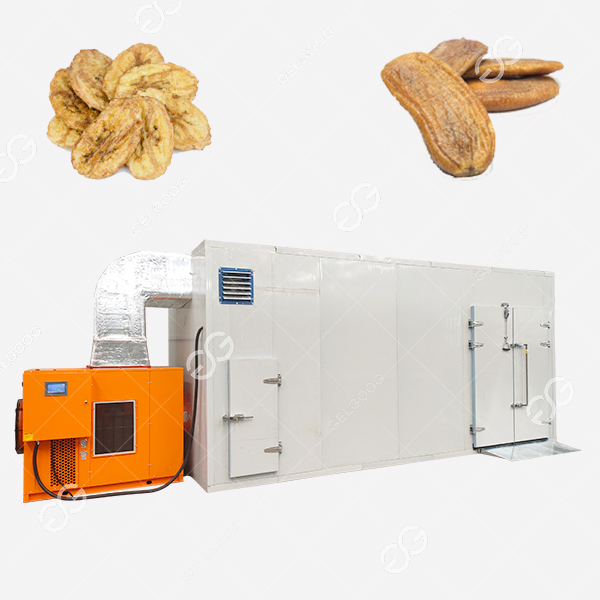

The shape design feature of this plantain drying machine is a closed drying box, which is mainly composed of a drying room, heat pump host, electric control system, circulating air system, stainless steel pallet material rack, waste heat recovery dehumidification device, insulation board, temperature and humidity sensor, etc. Other auxiliary accessories.

 Video Plantain Drying Machine

Advantages Of Plantain Dryer Machine In Nigeria

  • The use of thermal insulation materials with a good thermal insulation effect can improve the thermal energy utilization rate of the equipment, so that the plantain drying machine has the characteristics of high thermal energy utilization rate, low energy consumption, and low operating cost.
  • Fully automatic temperature and humidity control, flexible and convenient. It can precisely control the drying temperature, humidity, and time of materials to ensure the drying quality of materials.
  • There is no polluted gas emission during the drying process, and no special technology heat exchanger is required during the heat exchange process.
  • Fully automatic intelligent operation, high degree of automation, saving time and effort, and reducing labor costs.
  • Dehumidification is reused by heat recovery, and the evaporator is recycled twice, which increases the working efficiency of the heat pump and reduces energy consumption at the same time.
  • Has a wide range of application scenarios and is suitable for a variety of products.

If you want to know more details about this plantain drying machine or get a quotation, you can leave us a message.

Technical Parameter

Item Heat Pump Dryer Parameter
Model GG-3P GG-7P GG-15P Unit
Environment temperature -10-43 -15-43 -15-43 ºC
Drying temperature range 30-75 30-75 30-75 ºC
Rated power 4 12 21 Kw
Maximum power 10 18 33 Kw
Power supply form 380/3/50 380/3/50 380/3/50 V/Ph/Hz
Temperature control accuracy ±1 ±1 ±1 ºC
Electric heating power 6 6 12 Kw
Controller Single chip microcomputer/PLC+color screen control
Noise level ≤75 ≤75 ≤75 dB(A)
Capacity 100-200 300-700 800-1500 Kg
Dehydration capacity 9 21 43 Kg/h(=50ºC,80%)
